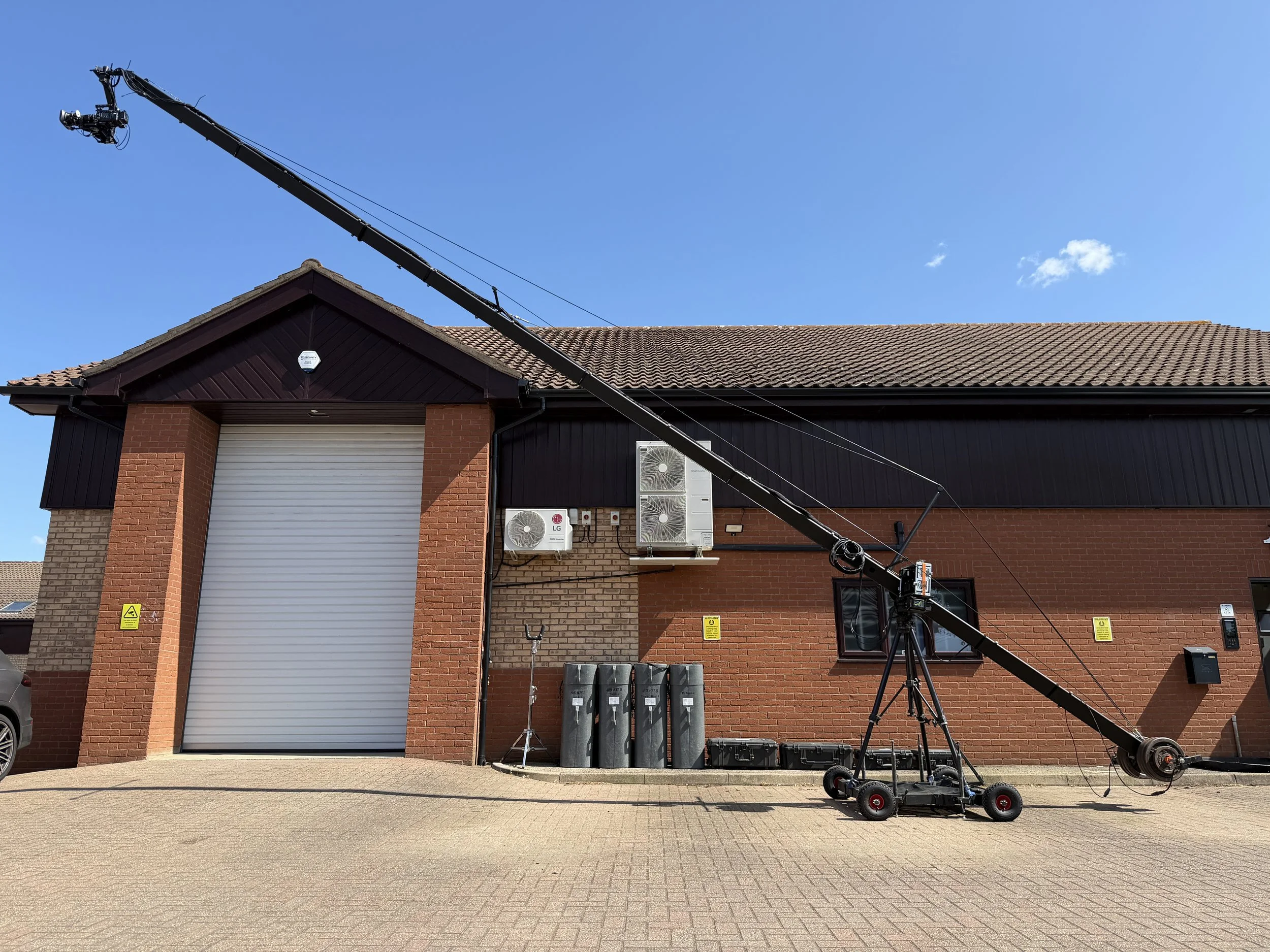

Stanton Jimmy Jib Triangle Camera Crane (6,9,12,15,18,21,24 & 30ft reach). Plus extensive modifications, strengthening and improvements AND completely unique Mitchell mount rigging option. This kit is quite literally a career ready to go for someone, it can be collected and taken straight to set, a very very comprehensive kit with extensive improvements and spares.

Completely overhauled in 2021. Benefitting from many upgrades including; uprated bearings all round, strengthening in vulnerable areas known for fatigue, original bearing surfaces skimmed and replaced with high quality stainless steel, pan/tilt axles in both the arm and remote head replaced with high quality stainless steel. Then to finish off the entire crane arm was chemically stripped, thoroughly examined for structural integrity and powder coated. It is now a far superior crane compared to how they are supplied as standard from the factory.

In addition, the arm has been professionally altered by Ronford Baker UK to accommodate an adjustable solid rod pulley bar, you have the option to replace the standard cable pulley system and the crane end for a custom made Mitchell mount instead. This opens up a whole other use for the arm and is able to fly many Gyro Stabilised Remote head that comply to the rated payload capacity of the arm. To date this has included FlightHead 4, FlightHead Colibri, Libra Mini, Shotover G1 and the Ronin 2. Please refer to the photographs to see the crane in its Mitchell mount configuration. The crane is able to be reversed back to standard as and when the user requires. Essentially making two cranes in one.

Please note, this sale is for the camera crane kit only,  which includes x1 13" monitor - see included items list below.  - NO CAMERAS, LENSES, GYROSTABILISED REMOTE HEADS or BATTERIES featured in the video or photos are included in the sale, they are purely shown for illustrative purposes and were necessary to provide an image in order to show the functions of the jib working in the video.

Collection in person preferred, delivery can be arranged at cost within England. Please contact direct if you wish to purchase and ship this equipment overseas

This sale includes UK VAT of 20% and a commercial invoice will be supplied with the sale.

Please message me for more information, photos or a video of the jib in action.

This sale is also advertised elsewhere.

Items included in the sale:

RIGGING CASE

x1 Peli 1650

x1 6ft pulley cable

x1 9ft pulley cable

x1 12ft top strut cable include shackles and bolts

x1 12ft pulley cable

x1 37pin loom extension with two BNC channel and power cable

x1 37pin loom to 24pin control box cable

x1 Y cable from control box to controllers

x14 arm bolts

x2 stanton trim balance weights

x1 spirit level

x1 adjustable spanner

x1 pocket imperial allen key set

x1 socket

x1 drill with battery and charger

x2 small ratchet straps

x1 Bag of bungees and safety straps

x1 bag of specific bolts for fulcrum mods and spares

x1 monitor bracket and fixing bolt

x1 standard sliding dove tail plate base

x1 VCT Camera plate and fixing bolts

TRIPOD/FULCRUM

x1 Stanton Transport Tube

x1 Stanton Tripod with anti slip collars and modified tie down

x1 weights bar with weight spacers and locking collar

x1 Fulcrum section with uprated bearings, uprated bearing surfaces, uprated axles

and modified tie down, , complete with too strut base and through bolt

x1 Monfrotto Avenger rigging stand with custom steel yolk

FRONT,REAR & TWO FORWARD ARM EXTENSION

x1 Stanton Transport Tube

x1 Front end section with uprated bearings and top strut bolt hole reinforcement

x1 Rear Tube with weight bar cross section strengthening and top strut bolt hole

reinforcement

x2 forward extension section

15,18 & 21ft EXTENSIONS

x1 Stanton Transport Tube

x1 Portabrace cable bag

x1 21ft top strut cable including bolts and shackles

x2 21ft side rigging cables including carabiners

x1 21ft pulley cable

x1 18ft top strut cable including bolts and shackles

x2 18ft side rigging cables including carabiners

x1 18ft pulley cable

x1 15ft top strut cable including bolts and shackles

x1 15ft pulley cable

x1 37pin loom including two BNC channels and power cable

x3 forward extension

x1 rear extension

x1 side spreader inc x2 tensioners

x1 alternative mounting arm for controls or accessories plus bolt

x10 extension bolts

24 & 30ft EXTENSIONS

x1 Stanton Transport Tube

x1 Doskocil Case

x1 30ft top strut cable including bolts and shackles

x2 30ft side rigging cables including carabiners

x1 30ft pulley cable

x1 24ft top strut cable including bolts and shackles

x2 24ft side rigging cables including carabiners

x1 24ft pulley cable

x1 37pin loom including two BNC channels and power cable

x1 long top strut pole

x1 long weights bar

x1 side spreader inc x2 tensioners and fitting bolt

x3 pulley guides with bolts

x1 monitor/control box swing bracket

x2 forward extension

x1 fifth tube forward extension including reinforcement modification

x1 rear extension

x15 extension bolts

JIB BRAIN/CPU

x1 Peli 1550

x2 Jib Brains

x1 bolt to fix jib brain to fulcrum

x1 Jib Juice mains Transformer

x1 Jib Juice V lovk battery power with custom outputs inc four pin xlr, USB and power

level readout

x2 battery cable

x1 IEC power cable

REMOTE HEAD< CONTROLS & MOTORS

x1 Peli 1650

x1 Jimmy Jib Triangle Remote Head with uprated pan and tilt bearings and axles,

loomed for easy replacement on set

x1 custom DJI Ronin2 mounting bracket

x3 pan/tilt motor assembly

x1 remote focus unit

x2 zoom/focus controller

x2 pan/tilt joystick controller

x2 master focus motor

x2 iris motor

x1 iris/focus lens mount bracket

x1 remote head locking Kip bolt

x1 Canon to Fuji zoom adaptor

x1 Canon Analogue to Canon Digital zoom adapter

x1 Spare Remote Head cable loom

x1 Spare Control box to Controllers cable loom

x1 control box to loom control cable

x1 spare battery cable

x1 spare remote head locking kip bolt

x1 spare camera plate bolt

x2 spare carabiner

x3 spare motor drive belt

x1 spare tall wide joystick adapter

x1 spare tall thin joystick adapter

x1 control box mounting bolt

x1 safety strap

x1 focus extension cable

x1 manual

MONITOR

x1 SMALLHD 1303 HDR Monitor in custom flight case

x2 BNC

x1 IEC power cable

x1 slim sunshade

x1 main transformer

x1 12v Vlock power plate

Bases

x1 custom Jimmy Jib Pro Base complete with steering handle, four levelling legs, set

of four track wheel trucks - positioned to roll on/off standard gauge dolly track run-

up, set of five 12inch pneumatic wheels, additional set of five 15” pneumatic wheel

for offroad use (not pictured)

x1 Stanton 3 wheel base with anti tip mod, with a complete spare wheel and spare

intertubes

Mitchell Mount Build

X1 custom Mitchell mount

X1 custom adapter section for crane end

X1 solid pulley rod section from fulcrum

X7 solid pulley rod sections

X1 solid pulley rod section to adapter plate.

Wet Covers

x1 crane wet cover kit

WEIGHTS

x9 25kg weights

x7 7.5kg weights

x4 5kg weights

x4 2.5kg weights

x2 1.25kg weight

x1 1kg weight

x2 0.5 kg weights
